Townsteel

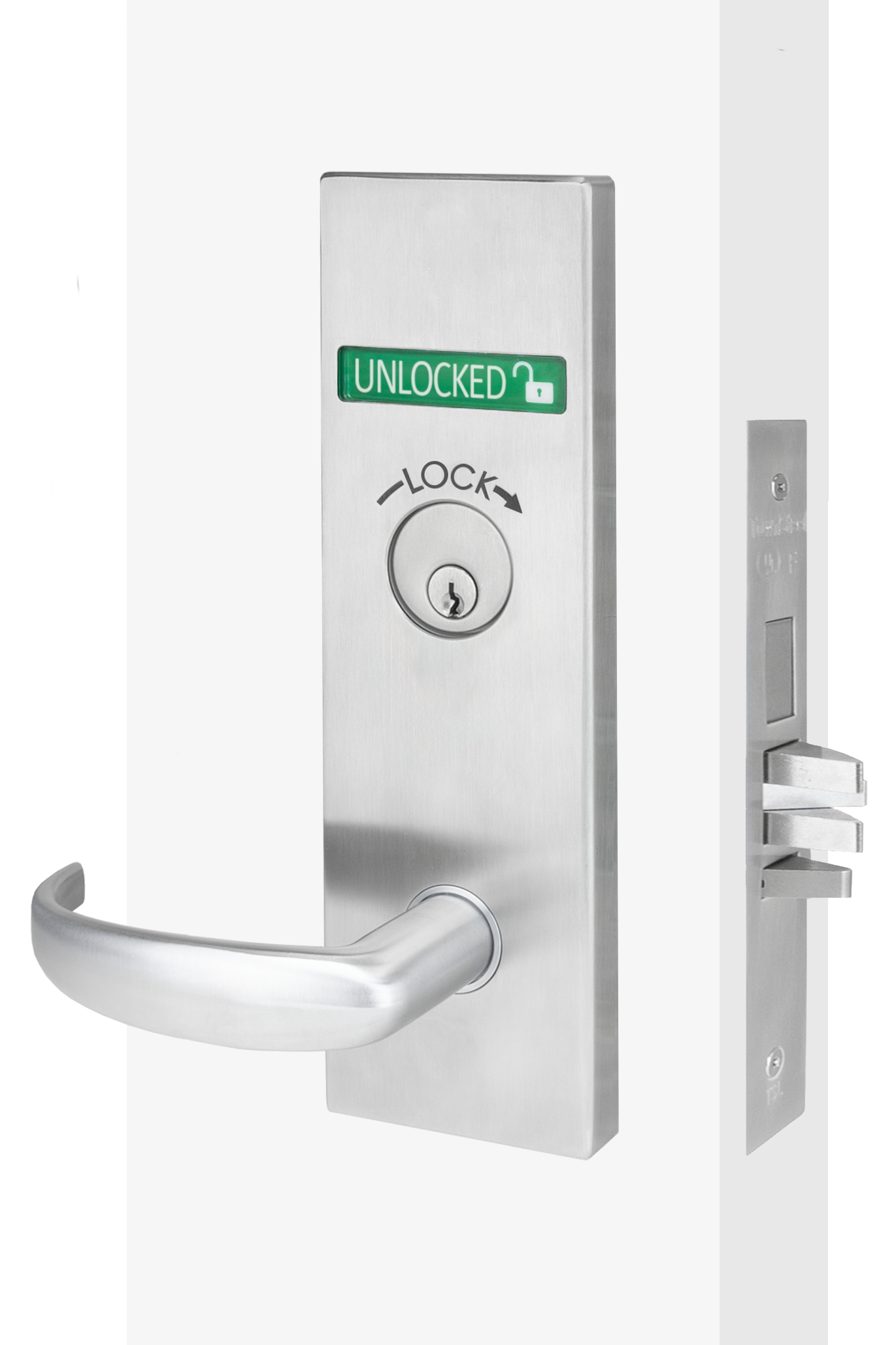

Aegis MSE-LM Mortise Lock
Description
TownSteel has engineered this product to fit into most competing brands mortise door preps! The Aegis Mortise Lock simplifies the upgrade process for you, saving time and money.
Depending upon the function of the lock you need, minor modifications may be required, but your warranty and ratings will not be impacted.
Features include:
Status indicators on both sides of the opening
Designed to meet industry standards
UL 10(C) 3-hour fire rating
Meets the requirements of the Americans with Disabilities Act (ADA)
Product Type
Mechanical
Compliance
Americans with Disabilities Act Compliant
UL 10C Compliant
Specifications
Series
MSE
Lockbodies
Mortise
Rigid
RM : Door prep Marks 5 Series / Dorma M9000 Series
RC : Door prep Corbin ML2000 Series
RB : Door prep TownSteel MS Series / Best 35/45 Series
RS : Door prep Sargent 8200 Series
RL : Door prep Schlage L Series
Handings
LH
RH
LHR
RHR
Non-handed
Field Reversible
Functions
(05) Classroom
(13) Dormitory or Exit
(21) Dormatory with Deadbolt
(22) Privacy
(32) Intruder Latch bolt
(33) Intruder Dead bolt
(115) Faculty Privacy
Door Thickness
1-3/4" standard
Request for custom
Backset
2-3/4"
Trim
Rigid
Strike
1-1/4″ X4-7/8″, Stainless steel, ASA
Latch Bolt
1/2" throw, stainless steel, deadlocking
Guard Bolt
Stainless steel
Faceplate
1-1/4" wide, brass or stainless steel
Escutcheon
Brass/stainless steel
Lever Parameters
Stainless Steel
Cylinder Specifications
6 pin Schlage® "C" Keyway, standard
Small Format IC with or without core available, 6 or 7 pin core, Best® "A" keyway
Schlage® Large Format IC less core available
Corbin® Large Format IC less core available, for 6 pin core
Keying: KD standard; KA, MK, GMK, GGMK and Construction Keys available
High security 6 pin w/ TS "L" keyway
High security 7 pin SFIC core w/ TS "L" keyway
UL/ULC
Meets or exceeds all applicable requirements
BAA
Meets guidelines of the Buy American Act
ADA
Meets requirements of the Americans with Disabilities Act
Deadbolt
1" throw, stainless steel, anti-saw hardended pins
Latch Bolt
3/4" projection, stainless steel, split, anti-friction
Thumb Turn
Stainless steel, ligature resistant, ADA
Stainless steel, conical shape standard
Stainless Steel, Classic Visible Standard
Mounting
Through-bolt, tamper resistant mounting screws, for wood and metal door
Keying
KD standard, KA, MK, GMK, GGMK, Construction Available
Mounting Screws
#8-32 tamper resistant, stainless steel
Levers
Sentinel
Quest
Cylinder Specifications
6 pin Schlage “C” keyway, standard, 2 keys per cylinder
CLFIC, Corbin® large format IC less core
High security 6-pin with Townsteel® “L” Keyway
High security 7-pin IC core with Townsteel ® “L” Keyway
Schlage® Large Format IC less core available
Trims
Escutcheon
Finishes
630, Satin Stainless Steel
